Plastic bottle unscramblers are used for automatic feeding to filling lines. Our machines can handle cylindrical, square and conical shaped bottles with central or offset neck position. Secondary orientation can be added as a free standing or built-in unit. Bottles with handles and/or irregular shapes can also be run on our custom tailored machines. The speeds are up to 300 BPM (bottles per minute) on the single model unscramblers, and up to 400-500 BPM on the TWIN models depending on bottle size, shape and rigidity.

The four basic models of unscramblers are CORPORAL, SERGEANT, BUGLER and TALLMAN. Each model is available in three sizes: 800, 1200 and 1500. This number reflects the diameter of the bottle sorting bowl in millimeters. The wide range of unscrambler types and sizes is the answer for different customer needs. When designing unscramblers, our priority is to produce machines that meet the requirements reflected in different bottle sizes, capacity needs and available floor space.

Please don't forget about our accessories for bottle unscramblers.

  Click here for more information our specific Unscramler Models...

Top of the page

Available ELF unscramblers composed by the combination of the following features

Model	Hopper	Elevator	Guarding	Bowl	Orienter Belt	Orienter Disc	Cleaner Belt	Discharge Disc

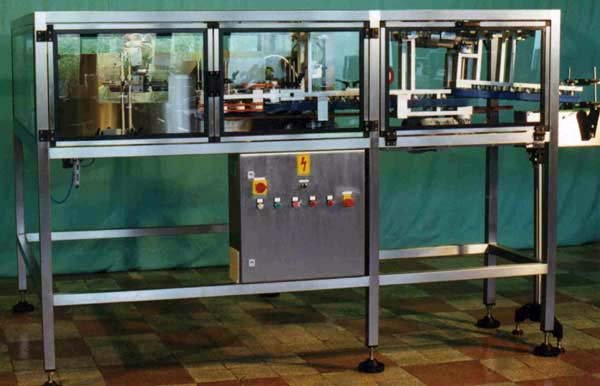

Corporal	-	-	-	x	x	-	-	x
Sergeant	x	x	x	x	x	-	-	x

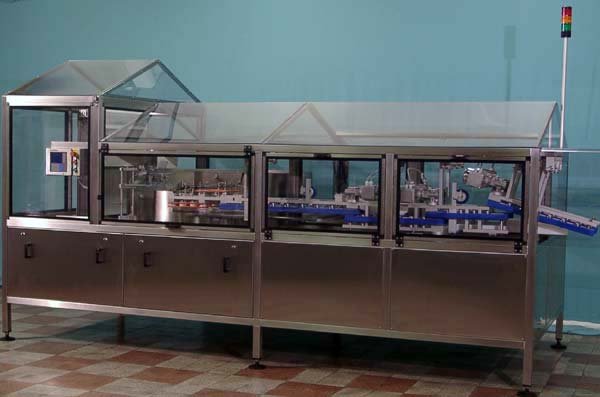

Bugler	x	x	x	x	x	-	x	x

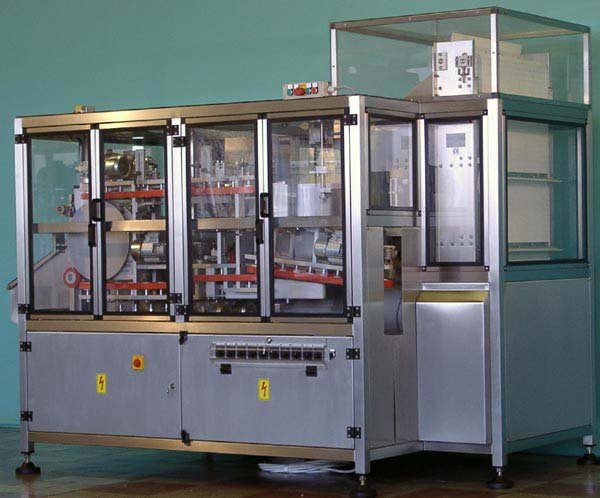

Tallman	x	x	x	x	-	x	x	x

Some guidance data for sorting bowl, bottle size and bottle shape

Machine Size	800		1200		1500
Bottle height (mm)	Cylindrical	Oval/rectangular	Cylindrical	Oval/rectangular	Cylindrical	Oval/rectangular
50	200	150	250	200	250	220
80	160	130	200	160	220	180
130	100	80	140	120	180	150
180	80	-	100	90	150	130
220	60	-	80	70	140	120
260	-	-	70	60	120	100
300	-	-	60	50	100	80
