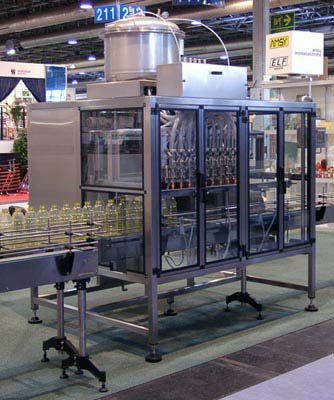

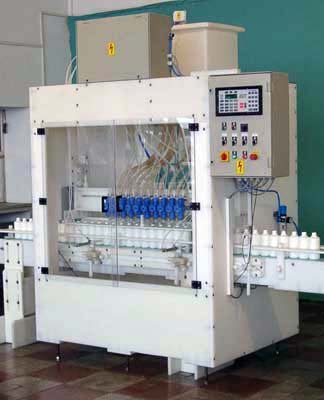

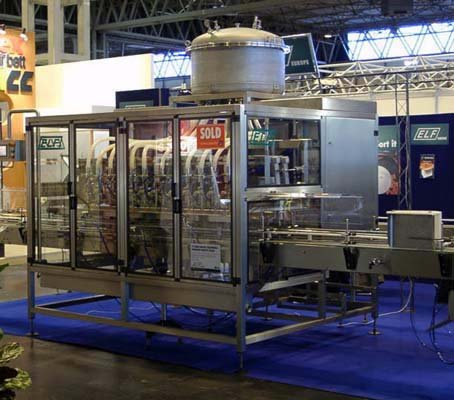

ELF fillers are in-line design, flexible pieces of equipment for mid-range (40-150 BPM) application to fill a wide variety of liquids. Machine features are always tailored to the specific project requirements before manufacturing. In order to increase the production rate, upgrading is an option at all times. To find the most economical solution, engineering consultation is recommended and appreciated before placing an order.

Available ELF Fillers are composed by the combination of the following features

Measure System Time Net Weight Flowmeter Massmeter	Product Agitation Gravity (no aid) Pressure Aid Pump Aid
Fill Head Construction Standard Bottom-up	Arrangement Single Duplex Twin (double face)
Design Options Standard Sanitary Explosion Proof Acid Conditioned

Top of the page

Approximate installation information

No. of filling heads	Dimension (mm)	Conveyor lenght (mm)	Electric Power	Compressed Air (m3/h)	Mass-duplex-(kg)
4	1460 x 1500 x 2600	4000	380V 3kW	10	920
6	1460 x 1500 x 2600	4000	380V 4kW	11	960
8	1460 x 1500 x 2600	4000	380V 5kW	12	1000
10	1460 x 1500 x 2600	4000	380V 6kW	13	1040
12	3000 x 1500 x 2600	6000	380V 7kW	14	1220
14	3000 x 1500 x 2600	6000	380V 8kW	15	1260
16	3000 x 1500 x 2600	6000	380V 9kW	15	1300
Standard conveyor height: 850 +/- 50 mm
